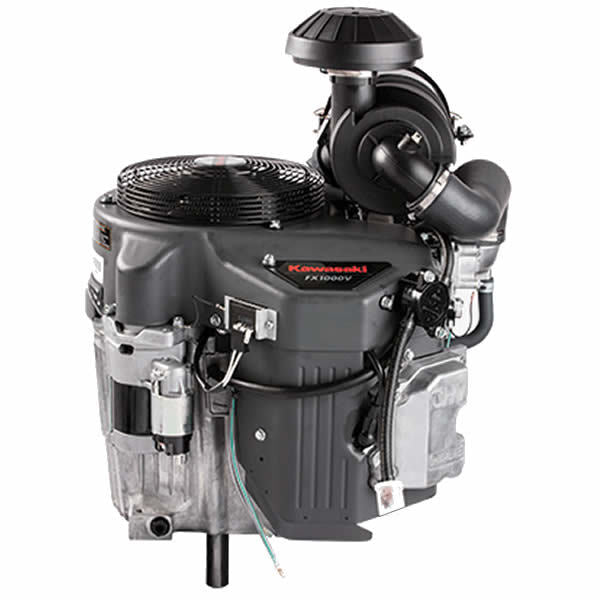

Kawasaki FXT00V-FS00S 999cc 35HP V-Twin Engine

$2,699.00

Add to wishlist

Sold By: Kawasaki
Product Sku:
Categories Kawasaki Engine parts, Kawasaki engines
Type: Engines

Description
Reviews

Kawasaki FX1000V - 999cc 35HP V-Twin Electric Start Vertical Engine, 1-1/8" x 3-15/16" Crankshaft

Engine

Engine Series Kawy FX

Engine Style Vertical

Cylinders 2

Engine Type 4-Cycle OHV

Cooling System Air

Dry Weight 138 Lbs

CC 999 CCs

HP 35.0 HP

Max Torque 56 Lbs

Cylinder Bore Type Cast Iron

Bore 3.5 Inches

Stroke 3.15 Inches

Compression Ratio 8.4:1

Systems

Charging System 15 Amps

Starting System 12-Volt Key Start

Ignition System Flywheel Magneto

Lubrication

Lubrication Pressurized

Oil Filter Yes

Oil Capacity 80 oz

Intake/Exhaust

Fuel Gas

Carburetor Twin Barrel

Muffler Not Included

Air Cleaner Mult-Stage Canister

Fuel Tank Not Included

Crankshaft

Crankshaft Rotation Direction Counterclockwise

Shaft Size 1-1/8 x 3-15/16" Inch

Crankshaft Type Straight

Crankshaft Diameter 1-1/8"

Crankshaft Length 3-15/16"

Overview

Made in USA Yes

Weight 138 Pounds

Consumer Warranty 3 Years

Commercial Warranty 3 Years

Model FXT00V-FS00S
