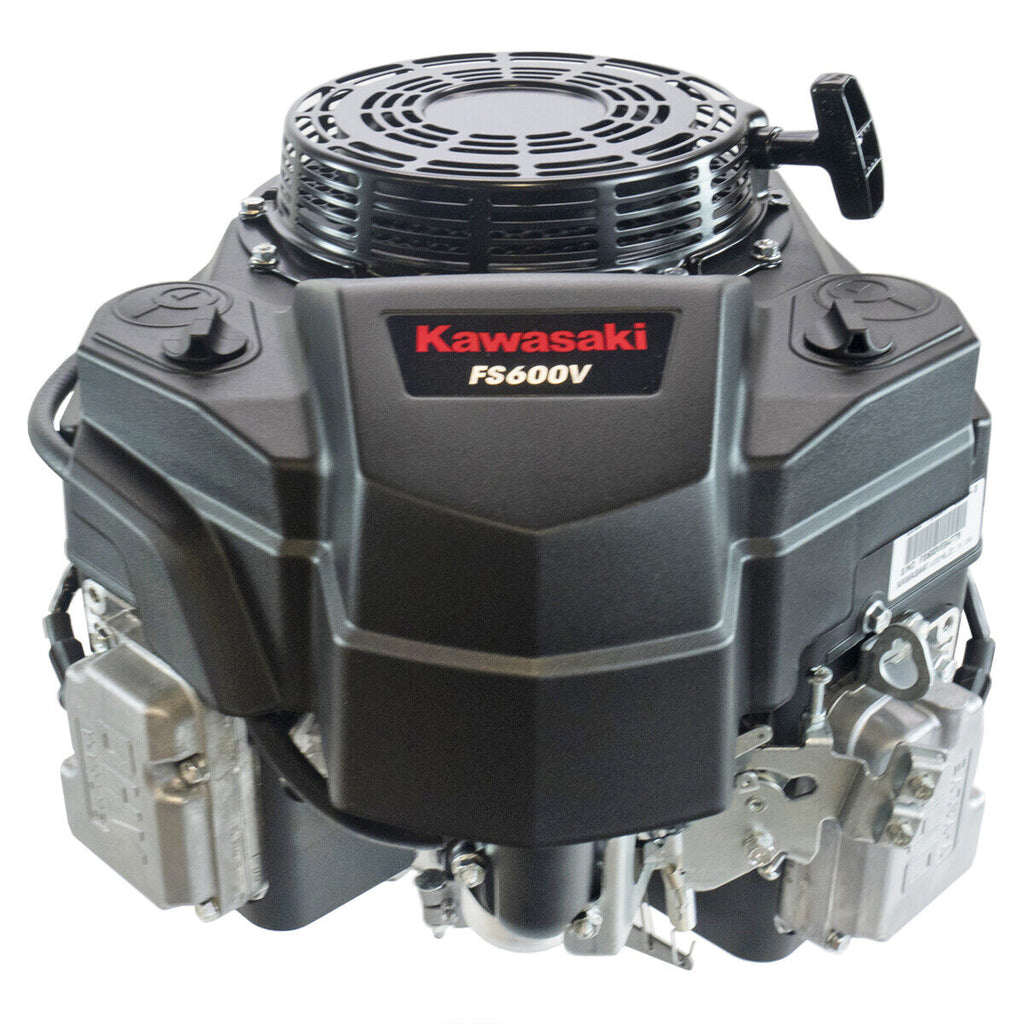

Genuine OEM Kawasaki FS600V-GS01S 18.5HP 1" Vertical RS Engine w/o Muffler

$1,305.99

Add to wishlist

Sold By: Kawasaki
Product Sku:
Categories Kawasaki Engine parts, Kawasaki engines
Type: KAWSAKI ENGINES

Description
Reviews

Genuine OEM Kawasaki FS600V-GS01S 18.5HP 1" Vertical RECOIL START Engine w/o MufflerEngine Type: Forced Air-Cooled V-twin 4-cycle Vertical Shaft OHV Gasoline Engine
Number of Cylinders: 2 Bore x Stroke: 2.9 x 2.8 in. (73 x 72mm)
Displacement: 603cc (36.8 cu. in.)
Compression Ratio: 8.1:1
Maximum Power: 18.5hp (13.8kW) /3600 rpm
Maximum Torque: 32.5 ft. lbs. 2200 rpm
Oil Capacity: 1.8 U.S. qt. (1.7 liter) w/Filter
Dry Weight (without muffler): 80.9 lbs. (36.7kg)
